Basic Images

The [img] tag allows you to include an image in a Sage article. Typically, images are stored locally, alongside the .sage source files. For example, to reference an image in the same folder as the .sage file…

[img Starburst.jpg]

The above might produce something like this…

Relative Paths

Relative paths are resolved from the location of the .sage file. For example, if the file C:\Docs\Sage\Main.sage has the statement: [img Details\Info.png], this refers to the file C:\Docs\Sage\Details\Info.png. Similarly, the statement: [img ..\Overview.png] refers to the file C:\Docs\Overview.png.

Warning

Sage does allow absolute paths, but relative paths are strongly preferred.


Supporting Light & Dark Themes

Sage allows you to specify two image files for a single [img] tag, one for use with the light theme, and the other for use with the dark.

This is especially useful for images with transparent backgrounds: such images may be very difficult to see if the foreground colors are close to the current theme's background color.

To specify two image files, use the light and dark keywords, for example…

[img dark DiagramDark.png light DiagramLight.png]

Above, Sage will use DiagramDark.png with the dark theme, and DiagramLight.png with the light theme.

Image Lists

The [img] tag supports images from TImageList components – specifically those from DSImages.

To reference an image from one of the image lists in DSImages, use the following notation:

[img :<Size>@<Index>]

Above, <Size> is the image list size (24 for Images24, 16 for Images16, etc) and <Index> is the index in that image list.

For example, to reference the CircleBlueWithWhiteArrowDown image (index 31 in Images24), do the following…

[img :24@31]

The above produces:

Tip

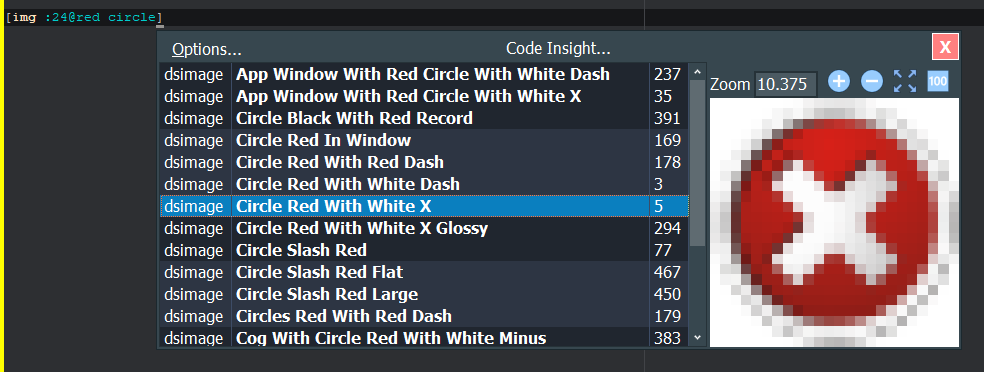

In DSEdit, Code Insight (⇧ Shift+^ Ctrl+Space) will help you find images by their description. For example…

When you select an item, its description is replaced with the corresponding index.

DSEdit can also suggest the image lists themselves.


Note

Images are specified by index, not by description. This is because the descriptions are subject to change (to correct typos, or to make descriptions more specific, as more images are added).


Note

SageWeb and DSEdit use images and descriptions compiled in, so these applications may need to be deployed to show recently added (or modified) images.


Tip

Some image lists offer both light and dark variations for some images. For example, Images16 offers LightHorizontalTree (index 330) and DarkHorizontalTree (index 331). To use these images in a theme-sensitive fashion…

[img dark :16@330 light :16@331]

The above produces:
